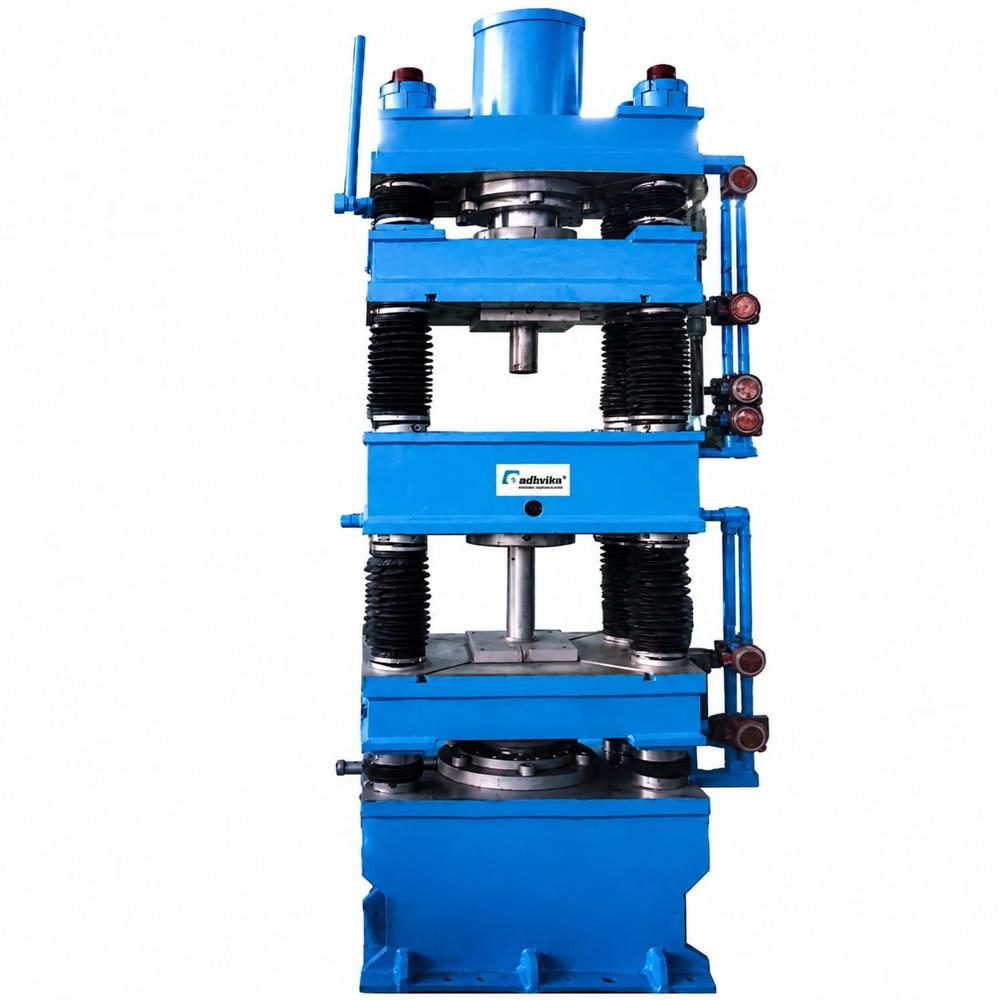

Hydraulic Deep Drawing Press

Name: Hydraulic Deep Drawing Press
Brand: ACHIEVE HYDRAULICS & PNEUMATICS PRIVATE LIMITED
Price: 600000.0 INR
Availability: InStock

Price 600000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Hydraulic Deep Drawing Press Specification

Nominal Force
200-2000 Ton

Power Source
Hydraulic

Condition
New

Dimension (L*W*H)
Customized as per model

Power(W)
11 kW

Voltage
380V/415V, 3 Phase, 50 Hz

Motor
Siemens/ABB Electric Motor

PLC System
Siemens PLC (optional)

Solenoid Valve
Hydraulic, high duty cycle

Pre-Fill Valve
Yes, standard included

Proportional Valve
Yes, for pressure and flow control

Pressure Gauge
Bourdon type, panel mounted

Max Opening Distance
1000 mm - 2000 mm

Working Table Size
1200 x 1200 mm - 2500 x 2500 mm

Stroke of Slide
600 mm - 1400 mm

Cylinder Type
Double Acting Main Cylinder

Surface Finish
Corrosion Resistant Paint

Control Panel
Integrated, user-friendly HMI

Oil Tank Capacity
Up to 3500 Litres

Application
Deep Drawing, Sheet Metal Forming, Automobile & Appliance Industries

Working Speed
Pressing: 5-15 mm/s; Return: 50-130 mm/s

Operation Mode
Automatic / Semi-automatic / Manual

Safety Features
Pressure Relief Valve, Emergency Stop, Light Curtain (optional)

Drawing Cushion Force
30-400 Ton

Frame Construction
Monolithic/4-Column Heavy Duty Welded Frame

About Hydraulic Deep Drawing Press

Get the most illustrious deal on the Hydraulic Deep Drawing Press, a reliable hot deal for precision and heavy-duty sheet metal forming. Buy online this unassailable Monolithic/4-Column Heavy Duty Welded Frame press, with a polished Corrosion Resistant finish. It offers a stroke of 600-1400 mm, drawing cushion force of 30-400 Ton, user-friendly HMI, integrated control panel, and versatile operation modes (Automatic/Semi-automatic/Manual). Featuring double acting main cylinder, pressure relief valve, and Siemens/ABB motors, this robust press delivers formidable power and safety for automotive and appliance applications.

Advanced Versatile Hydraulic Deep Drawing Press

Designed for both automatic and manual operations, this Hydraulic Deep Drawing Press supports a wide range of application areas such as automobile and appliance industries, deep drawing, and intricate sheet metal forming. It comes equipped with extra features like proportional valve for precise pressure control, pre-fill valve, Siemens PLC (optional), and an emergency stop function. The corrosion-resistant polished paint ensures a long-lasting, illustrious surface suitable for rigorous industrial environments.

Export Markets, Terms, and Logistics Support

This Hydraulic Deep Drawing Press is supplied by experienced exporters and manufacturers, reaching diverse international markets efficiently. Our well-organized logistics and transportation network assures prompt deliveries, typically within industry-standard timeframes. We offer competitive quotations, flexible payment terms, and dedicated support to streamline your purchasing process, guaranteeing smooth procurement and installation, no matter your location.

FAQ's of Hydraulic Deep Drawing Press:

Q: How does the Hydraulic Deep Drawing Press ensure user safety during operation?

A: Safety is prioritized through redundant safety features, including a pressure relief valve, emergency stop mechanism, and an optional light curtain. These elements collectively minimize risks while enabling secure, efficient operation even in demanding production environments.

Q: What makes this Hydraulic Deep Drawing Press suitable for the automobile and appliance industries?

A: Its unassailable frame, extensive force range (200-2000 Ton), customizable size, and advanced features support high-precision deep drawing and sheet forming, making it ideal for automotive panels and appliance components production.

Q: Where can I install and use the Hydraulic Deep Drawing Press?

A: This press is engineered for installation in factories and production workshops handling sheet metal forming, deep drawing, and heavy-duty manufacturing, especially within the automotive, appliance, and metalworking sectors.

Q: What are the control options available on this machine?

A: The press provides an integrated, user-friendly HMI control panel, with operation modes including automatic, semi-automatic, and manual. For advanced needs, a Siemens PLC system can be optionally integrated for optimized process management.

Q: How does the quotation process work for export orders?

A: You can request a detailed quotation online. Upon approval, we handle logistics and transportation using secure and efficient routes to ensure timely and damage-free delivery to your site.

Q: What are the major benefits of using this Hydraulic Deep Drawing Press?

A: The prime benefits include high durability, versatile control modes, precise pressure management, and a corrosion-resistant polished finish, ensuring reliable, efficient, and long-lasting operation for all deep drawing applications.
