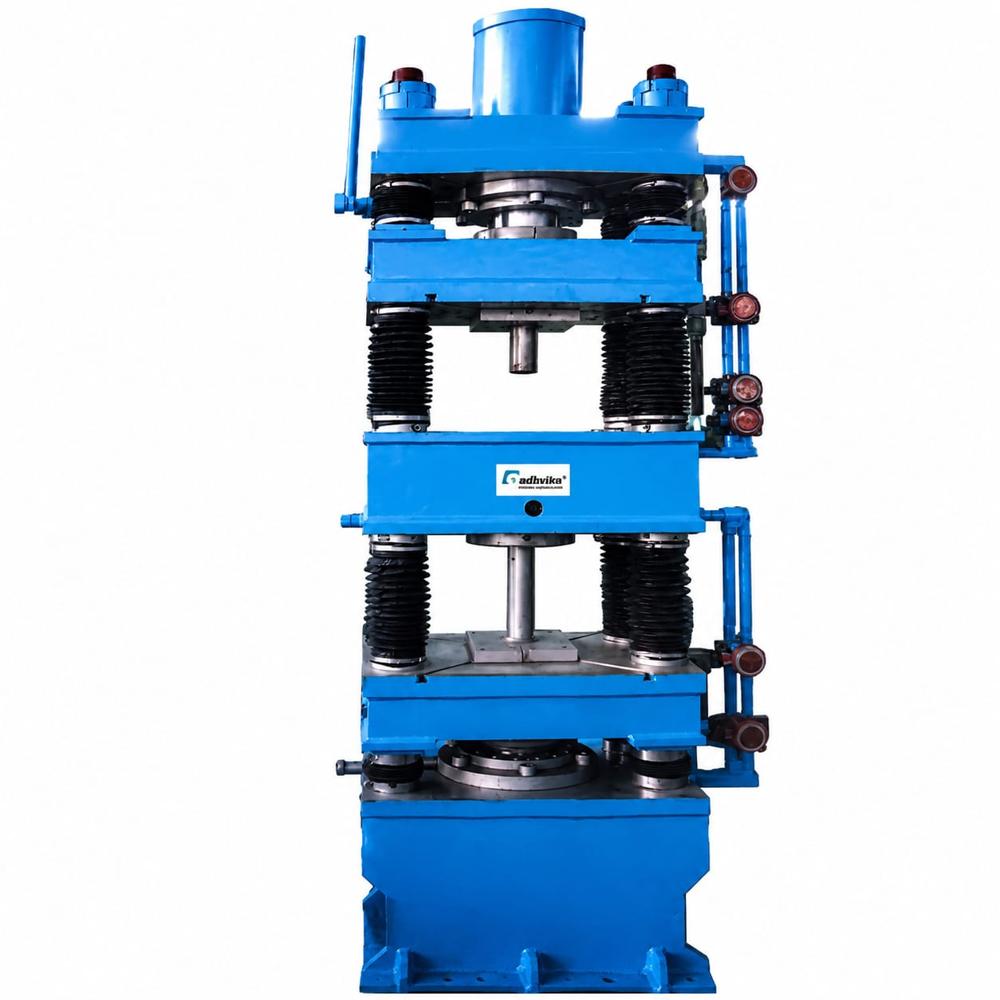

Hydraulic Metal Press

Name: Hydraulic Metal Press
Brand: ACHIEVE HYDRAULICS & PNEUMATICS PRIVATE LIMITED
Price: 600000.0 INR
Availability: InStock

Price 600000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Hydraulic Metal Press Specification

Nominal Force
150 Ton

Power Source
Hydraulic

Condition
New

Dimension (L*W*H)
2500 mm x 1200 mm x 2300 mm

Power(W)
7.5 kW

Voltage
415 V AC, 3 Phase

Motor
Heavy Duty Electric Motor

PLC System
Siemens PLC

Solenoid Valve
Imported Make

Pre-Fill Valve
Yes

Proportional Valve
Available

Pressure Gauge
Yes

Max Opening Distance
700 mm

Working Table Size
1000 mm x 600 mm

Production Capacity
Up to 30 cycles/min

Noise Level
75 dB

Safety Features
Two-Hand Safety Operation, Overload Protection

Application
Sheet Metal Forming, Cutting, Bending

Control Panel
Automatic with Emergency Stop

Oil Tank Capacity
250 Litres

Weight
Approx. 3200 kg

Working Pressure
200 Bar

Hydraulic Oil Type
ISO VG 68

Stroke Length
450 mm

Frame Type
H-type Fabricated Steel Frame

About Hydraulic Metal Press

Last Chance to own a top-rated Hydraulic Metal Press, designed for valorous performance in heavy-duty applications. This classic H-type press features a valiant, fabricated steel frame and a Siemens PLC-controlled automatic panel with emergency stop for timeless reliability. Boasting a generous 450 mm stroke, 250-litre oil tank, and 200-bar working pressure, it's engineered for seamless sheet metal forming, cutting, and bending. Precision, safety (two-hand operation, overload protection), and efficiency-up to 30 cycles/min-define this robust 150 Ton machinery. Order now for unmatched durability and elite output!

Commercial Uses & Plant Application of Hydraulic Metal Press

Harness the full potential of this Hydraulic Metal Press across diverse industries, including automotive, appliance manufacturing, and metal fabrication. Renowned for its classic design and top-rated performance, it flawlessly handles commercial sheet metal forming, cutting, and bending. With its robust H-type steel frame, heavy-duty electric motor, and enhanced safety features, this machine is ideal for high-volume production environments and plant operations prioritizing reliability, consistent output, and operational safety.

Delivery, Payment Terms & FOB Port for Hydraulic Metal Press

We efficiently supply Hydraulic Metal Presses with a streamlined goods transport process, ensuring timely delivery to your facility. Delivery times may vary based on order quantity and location, so please contact us for a precise estimate. Payment terms are flexible; we accept various secure methods to meet your requirements. The list price is competitive for bulk orders. FOB port details can be provided on request-reach out to discuss your shipping, supply chain, and transport needs.

FAQ's of Hydraulic Metal Press:

Q: How does the two-hand safety operation feature work on this Hydraulic Metal Press?

A: The two-hand safety operation requires the operator to engage both controls simultaneously, preventing accidental activation and ensuring hands are kept clear of moving parts during operation.

Q: What commercial applications is the Hydraulic Metal Press suitable for?

A: This press is ideal for sheet metal forming, cutting, and bending, making it perfect for automotive manufacturing, appliance production, and other heavy-duty metal fabrication industries.

Q: When should I perform maintenance on the Hydraulic Metal Press?

A: Regular maintenance is recommended, typically every 500 working hours or as guidance in the equipment manual, to ensure longevity and reliable performance.

Q: Where can this press be installed within an industrial plant?

A: The press is best placed on a leveled floor in environments with stable electrical and hydraulic supply, allowing for safe and accessible operation in production workshops.

Q: What are the main benefits of the Siemens PLC control panel?

A: The Siemens PLC control panel provides precise operation, automated process settings, troubleshooting diagnostics, and enhances both efficiency and safety during production cycles.
