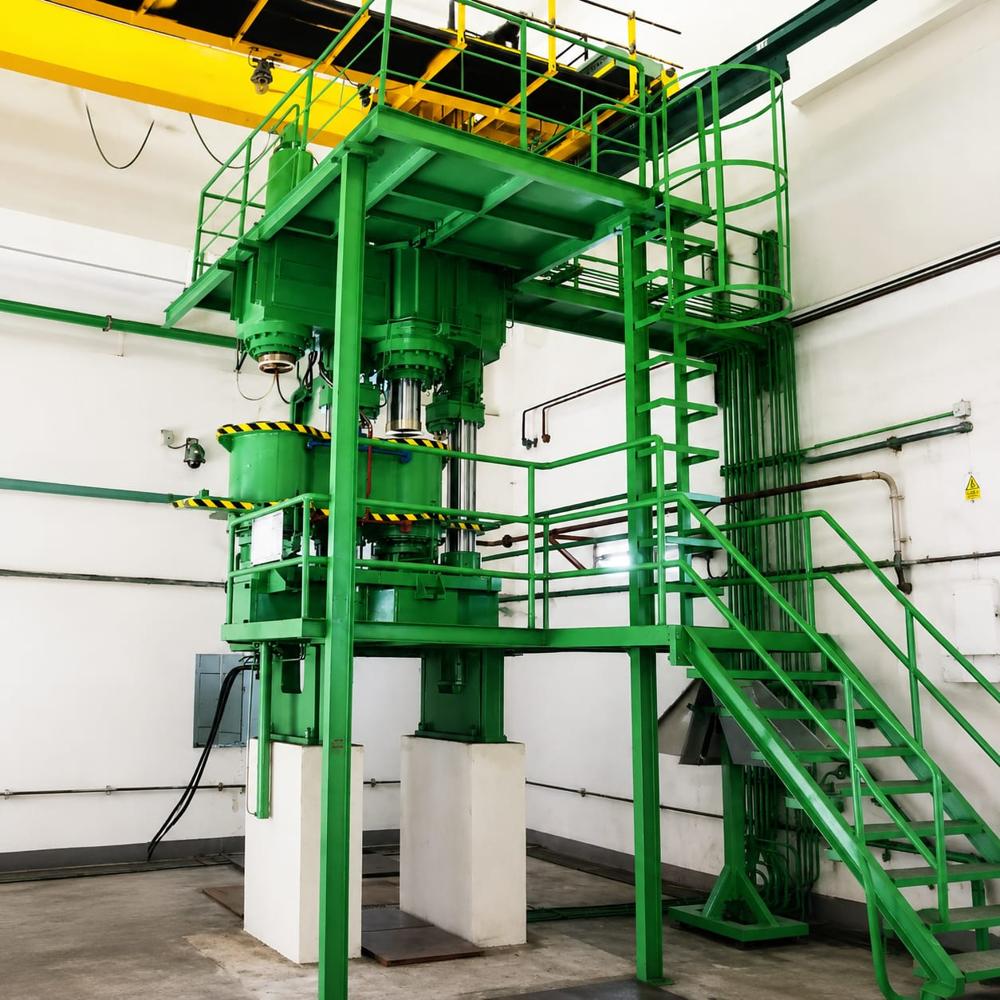

vertical hydraulic press machine

Name: vertical hydraulic press machine
Brand: ACHIEVE HYDRAULICS & PNEUMATICS PRIVATE LIMITED
Price: 50000000.0 INR
Availability: InStock

Price 50000000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

About vertical hydraulic press machine

A 450-ton vertical hydraulic press is a heavy-duty industrial machine designed for deep drawing, stamping, and metal forming. It generally features a robust 4-column or H-frame steel structure, a daylight opening of 900 mm, and a bed size around 900 900 mm to accommodate large molds. [1, 2, 3]

Core Specifications

Capacity: 450 Tons (450,000 kg)
Structure: Heavy-duty 4-pillar or H-type fabricated steel frame
Table / Platen Size: Customarily starting around \(900 \times 900 \text{ mm}\)
Main Ram Stroke Length: \(600 \text{ mm}\) to \(700 \text{ mm}\)
Daylight Opening: Typically \(900 \text{ mm}\) (adjustable)
Operating Voltage: 380V 440V (Three-phase) [1, 2, 3, 4, 5]

Operating Speeds

Approach Speed: 100 to \(150 \text{ mm/sec}\) (for idle time)
Pressing Speed: 40 to \(50 \text{ mm/sec}\) (for compression)
Return Speed: 100 to \(120 \text{ mm/sec}\) [1]

Hydraulics & Controls

Maximum Working Pressure: Generally ranges from 175 bar to 250 bar
Motor Capacity: 15 HP to 30 HP (dependent on speed and pump configuration)
Control System: PLC-based with a centralized Human-Machine Interface (HMI) for auto/semi-automatic operation [1]

Note: The exact dimensions and cylinder strokes are heavily customizable based on the specific industrial application (e.g., molding, powder compaction, or sheet metal pressing).
